ImHex for reverse-engineering binary files in authorized analysis workflows

ImHex is a feature-rich, cross-platform hex editor aimed at reverse engineers, malware analysts, and programmers who need to inspect, parse, and annotate binary data during authorized engagements.

Tool	WerWolv/ImHex — a hex editor for reverse engineers with a custom pattern language, disassembler, and rich analysis features
Category	Binary analysis / reverse engineering (C++, GPL-2.0, ~54.8k stars)
Primary Use	Inspecting, parsing, diffing, and annotating binaries, firmware images, memory dumps, and raw disks during authorized security research and forensic triage
Safe Use	Intended for authorized penetration tests, CTF/lab work, malware research in isolated environments, and internal forensic investigations of systems you own or are contracted to assess
Telemetry Note	ImHex is a passive offline analysis tool; it performs no network callbacks on its own. Defenders observe its footprint mainly through GDB-server or process-memory introspection on lab hosts it is pointed at.

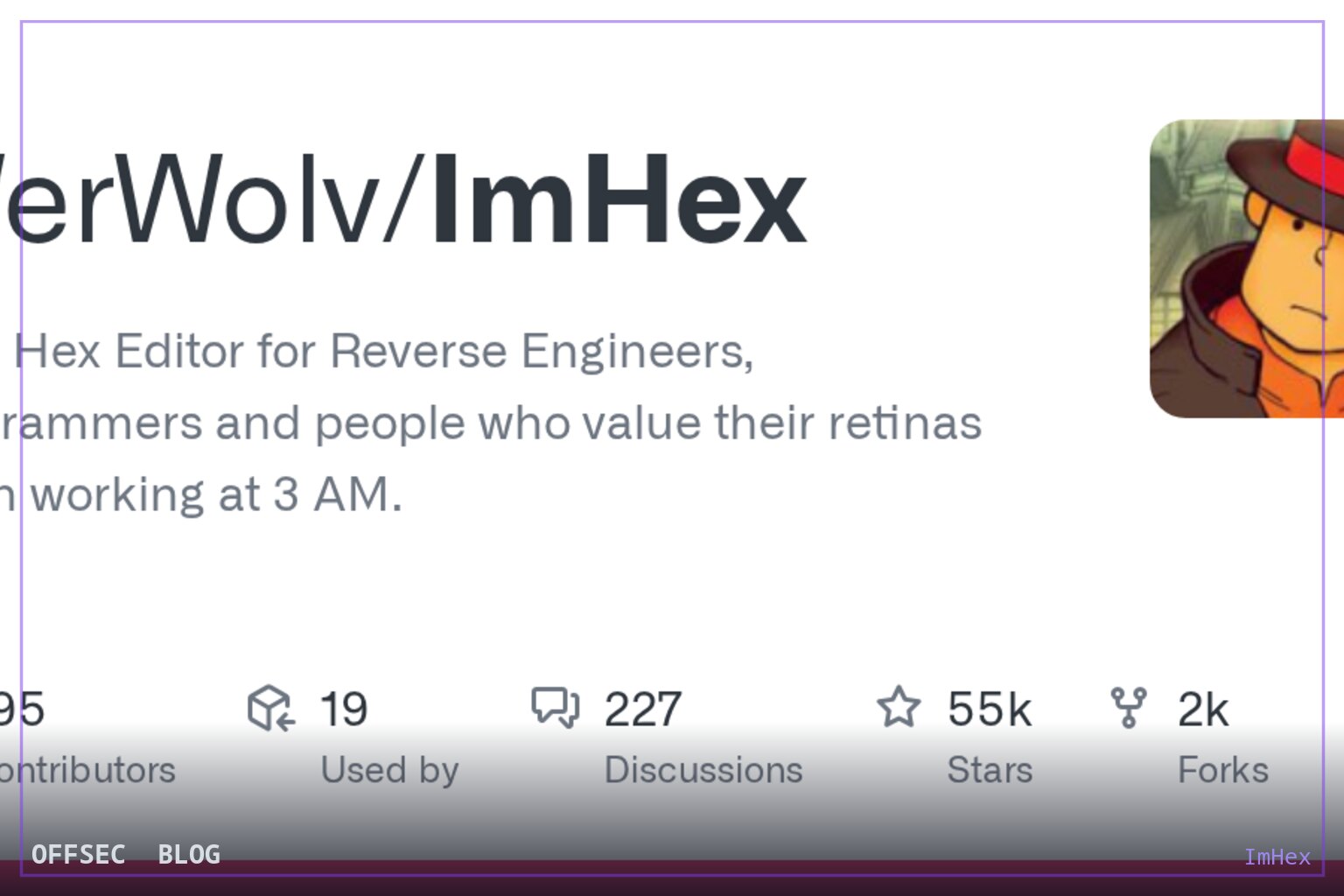

ImHex, hosted at WerWolv/ImHex, has become one of the most recognizable open-source hex editors in the security community, and for good reason: it treats binary inspection not as a passive byte-dump but as an active analysis workflow. Written in C++ and licensed under GPL-2.0, the project has accumulated roughly 54,800 stars on GitHub, an active Discord community, plugin support documented in PLUGINS.md, and even a browser-based version you can try before installing anything. The README pitches it at reverse engineers, programmers, and, in the author's words, people who value their retinas when working at 3 AM — a nod to the dark-mode-by-default Dear ImGui interface that dominates its design.

At its core, ImHex provides a hex view that goes well beyond the basics. It supports byte patching with a dedicated patch management view, infinite undo and redo, and flexible copy-as exports ranging from plain hex strings to arrays formatted for C, C++, C#, Rust, Python, Java, and JavaScript, plus ASCII-art hex dumps and self-contained HTML divs. Data can be displayed as integers of 8 to 64 bits, half/float/double precision values, RGBA8 colors, binary, and HexII. Text decoding covers UTF-8, UTF-16, ShiftJIS, and most Windows code pages, which matters when you are triaging firmware blobs or legacy malware samples that assume a specific locale.

The standout architectural feature is the custom C++-like pattern language. Rather than manually mapping struct fields in your head, you write declarative patterns describing arrays, pointers, structs, unions, enums, bitfields, namespaces, conditionals, and explicit little- or big-endian annotations. Patterns attach automatically based on MIME types and magic values, and the editor overlays the parsed structure directly onto the hex view with syntax highlighting and genuinely useful error messages. The pattern language can also visualize parsed content as images, audio, 3D models, coordinates, or timestamps — the README shows an STL parser rendering a 3D model inline, which is a striking demonstration of how far the abstraction reaches.

The Data Inspector panel complements the pattern language for quick lookups, interpreting the bytes at the cursor as signed and unsigned integers at unusual widths like 24-bit and 48-bit, LEB128 values, floats, GUIDs, time32_t/time64_t, DOS dates, and colors. Because the inspector is extensible through the pattern language, teams can encode domain-specific formats — proprietary headers, obfuscated fields, custom checksums — once and reuse them across sessions. Bookmarks with custom names, colors, and comments turn a sprawling sample into a navigable, annotated workspace, and any bookmark region can be opened in its own tab.

Where ImHex gets genuinely interesting from an operator's perspective is its data source layer. Beyond local files, it can load raw disks and partitions, Intel Hex and Motorola SREC images, Base64 blobs, and remote files over SSH/SFTP. More notably, it attaches to a GDB server to inspect the RAM of a running process or embedded device, and it can open the entire address space of a live process. In an authorized lab — debugging a router firmware image over GDB, or examining a process you own in a sandbox — this collapses the usual copy-the-dump-then-open-it detour into a single live session.

A node-based data preprocessor sits between the source and the display, letting you modify, decode, or decrypt data before rendering without ever touching the underlying file. This is a forensic-friendly design decision: you can experiment with transformations — XOR layers, decompression, Base64 chains — non-destructively, and the node graph documents the chain of reasoning for a report. Custom nodes are supported, so repetitive decode pipelines can be packaged and shared within a team.

Search capabilities cover the practical spectrum: string extraction with minimum length, character-set, and encoding filters; sequence search with case-insensitivity; regex search; binary pattern search with wildcards; and numeric value search across sizes, endiannesses, and ranges, with an option to skip unaligned hits. Hashing support is unusually broad for a hex editor — CRC variants with custom polynomials, the MD5 and SHA families, MurmurHash3, XXHash, SipHash, Tiger, Blake2 — and can hash selected regions or arbitrary strings, which is convenient for carving and triage notes. A diffing view compares two data sources with difference highlighting and a table of changes.

For static analysis proper, ImHex integrates a disassembler built on Capstone, covering x86 in all widths, ARM32 including Thumb and Cortex-M, ARM64, MIPS, PowerPC, SPARC, RISC-V, WebAssembly, M68K, SystemZ, and more, with hooks for writing disassemblers for custom architectures. The analyzer view adds file magic and MIME detection, byte-type distribution graphs, entropy graphs with average and peak values, and digram/layered byte visualizations — enough to spot packed or encrypted regions at a glance without leaving the tool. YARA rule support lets you scan loaded data against rules, highlight matches in the hex view, and jump between them, which slots naturally into a malware-triage or threat-hunting workflow on samples you are authorized to handle.

Import and export options reinforce the reporting angle: Base64 files, IPS and IPS32 patches (a nod to its ROM-hacking audience), Markdown reports, and binary arrays for various languages. The theming system with shareable theme files and custom fonts is a small thing, but in practice long analysis sessions benefit from a UI that stays legible, and the multi-platform support across Windows, Linux, and macOS means the same patterns and bookmarks follow you across machines. Distribution includes stable releases, nightly builds, and a web version, all reachable through the project's official download pages rather than third-party mirrors you cannot verify.

Operationally, treat ImHex as a passive, read-mostly instrument — patching is explicit and visible, and nothing in the README suggests network callbacks or telemetry, so its footprint in an environment is limited to the processes and files you point it at. That makes it well suited to defensive research, forensic documentation of a sample you already hold, and authorized engagements where you need to explain a binary's structure to a client. What to watch for: the GDB server and process-memory sources mean it attaches to live targets, so scope discipline still applies, and as with any pattern someone hands you, third-party .hexpat files are code-adjacent — review them before loading. Compared with heavyweight disassembler suites, ImHex is not a substitute for full decompilation, but as a structure-aware hex editor that bridges raw bytes, live memory, and human-readable reports, it earns its place in the kit.

To evaluate it, the README points to the official download portal and the browser-based version, and the standard source route is git clone https://github.com/WerWolv/ImHex followed by the documented build process for your platform, with prebuilt binaries available from the releases page. For anyone doing authorized binary analysis who is still using a bare-bones hex dump, ImHex is the tool most likely to retire that habit.
